Actions on Layout Pages

Layout pages are not hard-coded or limited. You can have as many layout pages as you need. However, the default set of layout pages is usually enough.

Note

All actions on layout pages are performed in the Administration panel of your store under Website → Themes → Layouts.

General actions

Adding a Layout Page

  1. In the list of layout pages, click the Add layout page button.
Add layout page
  1. A pop-up window will open. Specify the properties of the new layout page.
  2. Click the Create button.

Removing a Layout Page

  1. Select a layout page and click the gear icon next to its name.

    Edit layout page

  2. Click the trash can button in the pop-up window that opens.

    Remove layout page

  3. Click Ok.

    Warning

    You cannot undo this action, unless you export this layout in advance and import it afterwards.

Editing Layout Page Properties

  1. Select the layout page and click the gear icon on the tab.
  2. A form will open where you can edit layout page properties.
  3. When you’re done, click Save to apply changes.

Export and Import

Layout pages can be imported and exported in an XML file. This is useful when you need to clone the layout to other storefronts.

It is recommended to export layout pages before making any changes to the storefront layout. That way you can always restore the original layout by importing the layout pages.

Important

The import and export of layout pages doesn’t take into account the state of the layout page for a certain object (such as product, category, page, etc.). If a block is disabled for a certain object, that information won’t be imported and exported.

Exporting Layout Pages

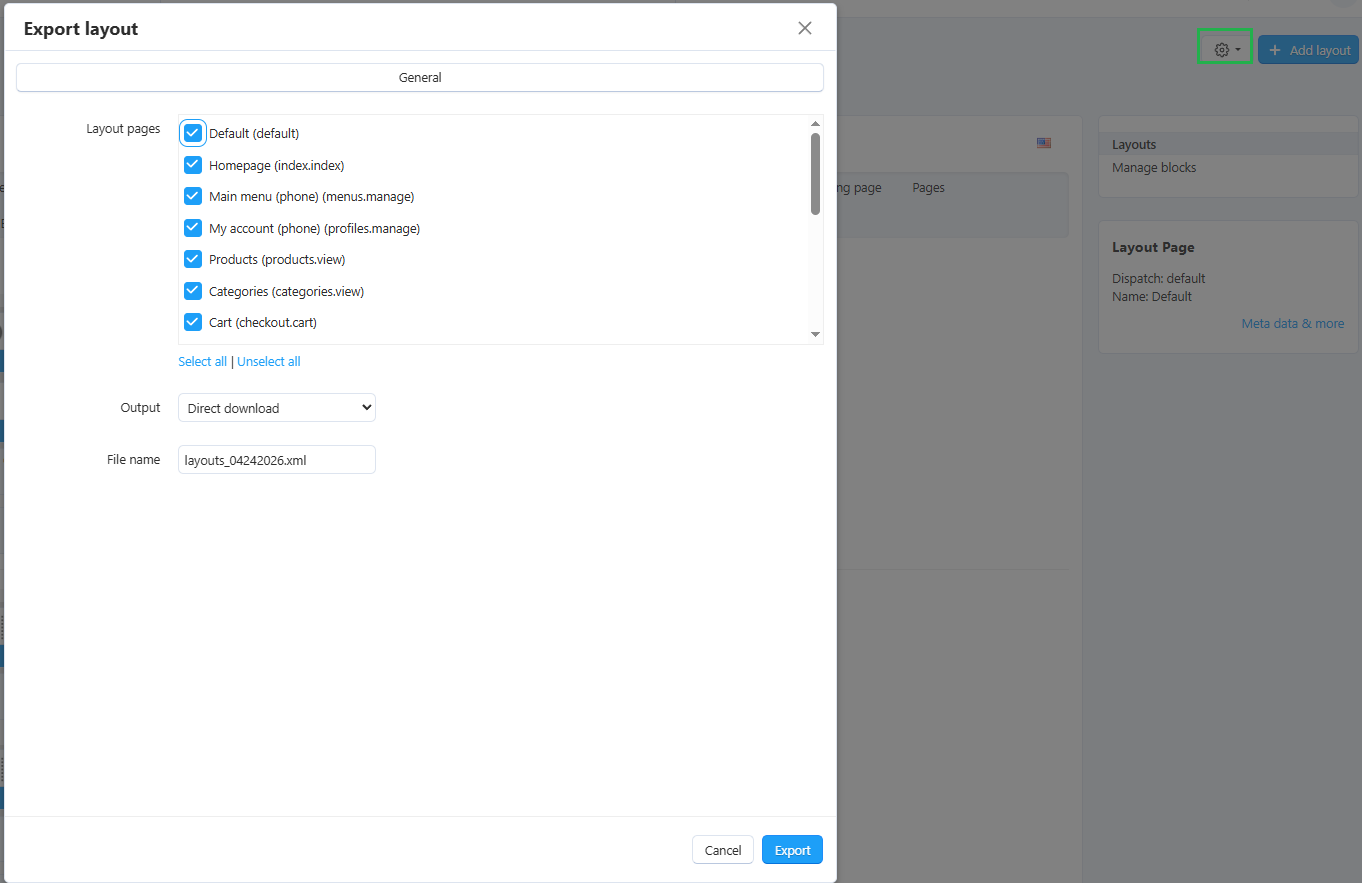

  1. Click the gear icon in the upper right part of the screen and choose Export Layout.

    Export layout

  2. A pop-up window will open. Configure the export settings there:

    • Layout pages—select the layout pages to be exported.
    • Output—output type:
      • Direct download—the XML file will be downloaded to your computer;
      • Server—file will be saved on the server where CS-Cart is installed;
      • Screen—file contents will be displayed on the screen.
    • File name—name of the exported file. By default, it is layouts_<TIMESTAMP>.xml.

  3. Click Export.

Importing Layout Pages

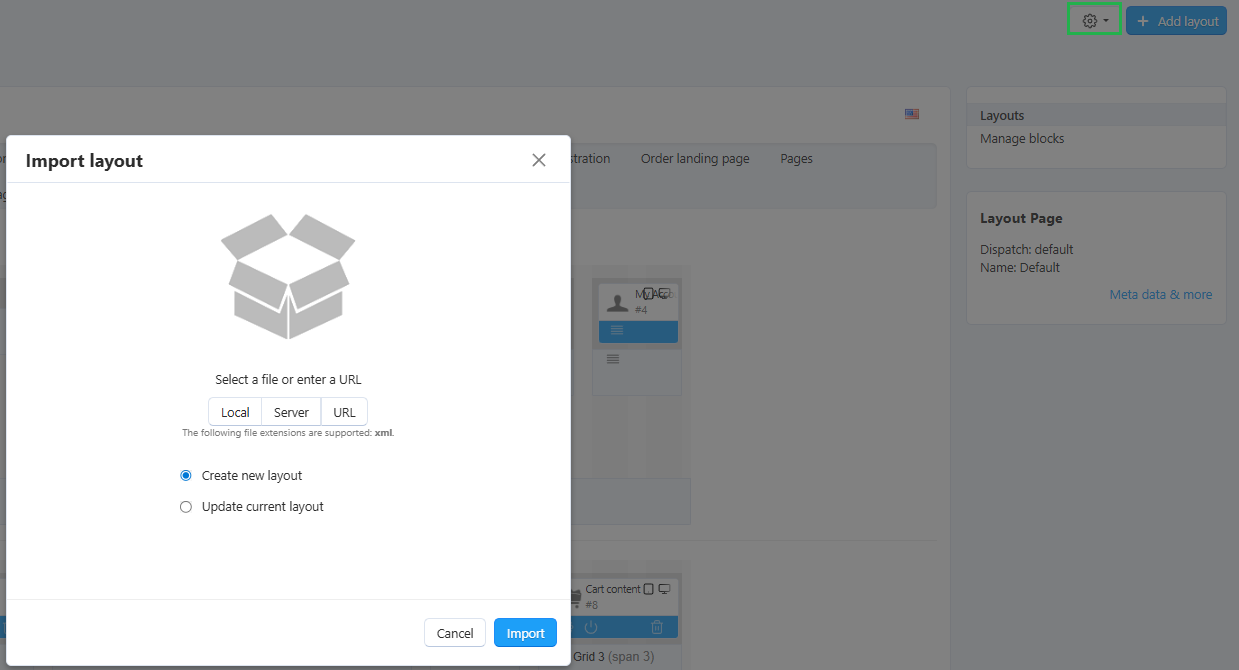

  1. Click the gear icon in the upper right part of the screen and choose Import layout.

    Import layout

  2. A pop-up window will open. Configure the import settings there:

    • Choose the file that will be imported or enter its URL.
    • Choose whether to create a new layout or update current one. If you have chosen to update the current layout, specify the other settings:
      • Clean up locations before import—if you tick this checkbox, all original layout pages will be deleted before the import.
      • Override locations by dispatch—if you tick this checkbox, existing layout pages will be replaced with the layout pages from the XML file with the same dispatch. Other imported layout pages will be added.

  3. Click Import.
